SG-ER1080, roll laminator. It is a classic model of fully automatic roll to roll laminating machine, with fast speed and high laminating viscosity. After being printed on flexible boards, it is one of the essential equipment for many food packaging factories to be waterproof, stain proof, and protect the printing effect.
Send Inquiry
Description
Technical Parameters
Advantages
The roll-to-roll laminator is designed for post-flexo printing applications. Key features include:
Dual-purpose Functionality: Capable of handling both pre-coated/thermal film lamination and water-based adhesive lamination.
High-speed Production: Achieves speeds up to 110 meters per minute, providing exceptional precision and cost-effectiveness.
Application
The roll-to-roll laminator is highly versatile and suitable for a wide range of applications, including:
Packaging: Enhancing the durability and appearance of various types of packaging.
Paper Boxes: Ideal for laminating boxes used for cosmetics, medicines, cigarettes, wine, and food.
Books and Magazines: Provides a glossy and protective finish to printed materials.
Calendars: Ensures a high-quality, long-lasting finish.
Cartons and Handbags: Improves strength and aesthetics.
Gift Boxes and Wine Packaging: Adds a premium look and feel to luxury items.
Specification
Model
SG-ER1080
Max Paper Width
1080mm
Min paper Width
300mm
Max Rewinding diameter
1500mm
Max Unwinding diameter
1500mm
Maximum Rewind load capacity
1200kg
Maximum Unwind load capacity
1200kg
Paper Thickness
80-600gsm
Speed
10-110m/min
Film thickness (common micrometer)
10/12/15
Common glue thickness
4-10 g/m2
Pre-gluing film thickness
1005,1006,1206 g/m2
(1508 and 1208 for deep embossing paper)
Main motor power
5kw
Roll working pressure
15 Mpa
Cable thickness
25mm2
Weight
7500kgs
Dimension (layout)
7500*3000*3170mm
Loading
40 HQ
Machine Details
Unwinding unit
Shaft-less Clamping: Supports 3, 6, and 12-inch cores, accommodating various paper roll sizes.
Hydraulic Lifting: Provides smooth adjustment and handling.
Manual/Automatic Tension Control: Managed by air brake for precision.
User-Friendly Panel: Simplifies operation with clear controls.
High-Precision Correction System: Ensures accurate alignment.
CCD Vision Sensor: Enhances tracking and rectification with ±75mm accuracy, while the system autonomously manages tension.

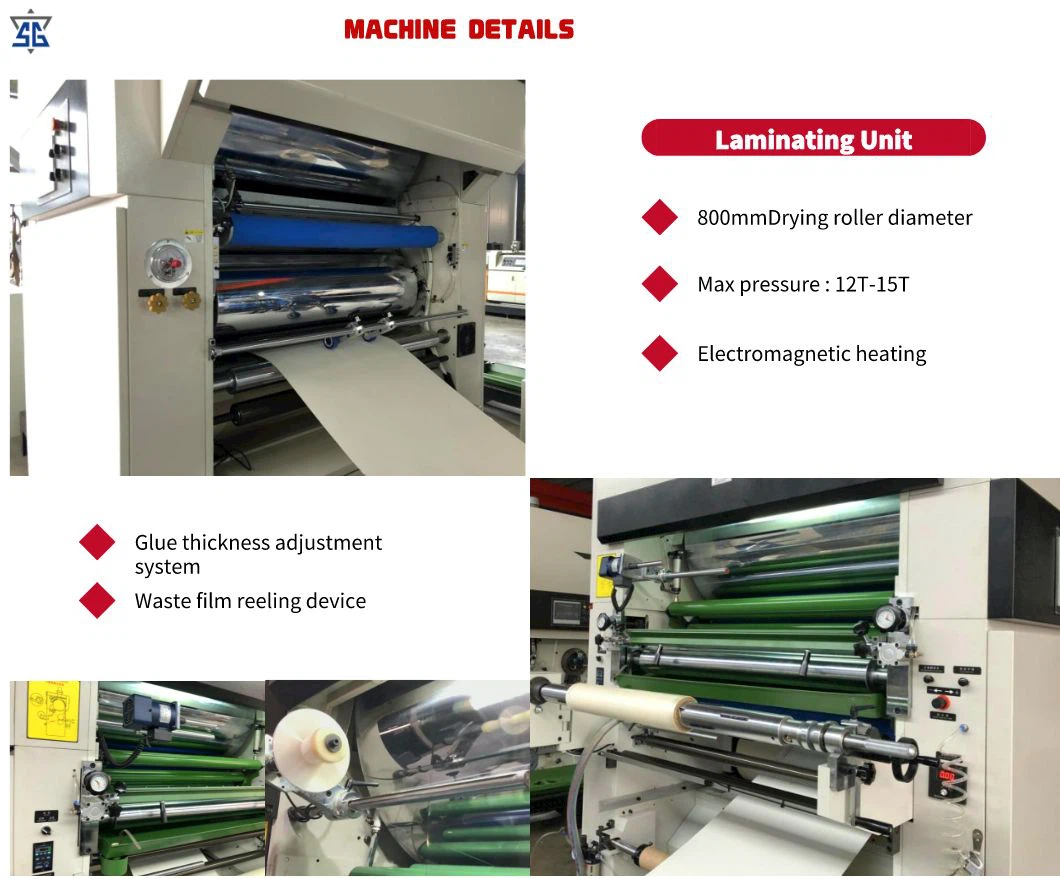

Laminating Unit
Increased Drying Roller Diameter: 800mm, utilizing an electromagnetic heating system for efficient drying.
High Pressure Capability: Press roller supports up to 12T-15T for robust laminating.
Teflon-Processed Gluing System: Ensures easy cleaning and prevents glue from sticking.
Advanced Electromagnetic Heating System: Rapid heating and cooling with built-in temperature measuring devices for precise temperature control.
Waste Film Reeling Device: For efficient handling of waste materials.
Precise Glue Thickness Adjustment: Adjusted through instrument data for accuracy.
Rewinding unit
AC Vector Frequency Conversion Control: Enhances speed and performance by integrating with the unwinding system.
Double-Cylinder Hydraulic Drive: Controls the lifting and lowering of the paper roll, ensuring smooth operation.
Torque Adjustment System: Allows for precise control of tension and pressure.
Air Expansion Shaft: Facilitates efficient winding of the film.
Company Introduction
Wenzhou SG Machinery Co.,Ltd, a manufacturer specialized in manufacturing laminating machines. We have fully automatic, semi-automatic, and manual laminating machines ranging from 390 to 1200mm in size, covering 95% of customer needs. We have a large-scale production workshop, regular warehouse, advanced processing workshop, as well as our own R&D team, beautifully decorated offices and conference rooms.
We have a relatively large market share in the Middle East, Southeast Asia, and China, and now we are more focused on developing foreign markets and maintaining new and old customers. We hope to have in-depth cooperation with more customers to achieve a win-win situation.
After-sales Service
We offer guide videos to assist with installation, debugging, operation, and maintenance of the machine.
During the warranty period, we provide spare parts free of charge for replacement, except in cases of human-induced damage.
Technical support is always available whenever the buyer needs assistance.
FAQ
Q: The warranty period of the equipment
A: The warranty period for the roll laminator is one year. During this time, we provide free equipment repair services. If you need an extension, please contact our sales representative.
Q: Is there any difficulty in operation and maintenance?
A: Our roll laminator is designed to be fully automatic and user-friendly. We provide detailed maintenance manuals and offer regular maintenance services to ensure the equipment operates reliably over the long term.
Q: What are the packaging materials and products suitable for?
A: Our roll laminator is primarily used for paper packaging but can also be applied to plastic packaging and leather products. Our end products typically include paper boxes (such as medicine boxes, cigarette boxes, wine boxes, cosmetics boxes, and food packaging boxes), carton boxes, paper bags, puzzles, hang tags, folders, and more.
